Conformance Test Boundary Clock Class CD

Class C/D Boundary Clocks (T-BCs) are being used to meet the strict time synchronization requirements needed by modern, highly time-sensitive networks, such as 5G.
While several metrics have defined limits for Class C T-BCs  in ITU-T G.8273.2, giving a clear overview of which requirements need to be met, this is not yet the case for Class D. Only one requirement is specified in ITU-T G.8273.2, section 7.1, table 7-2: a low-pass filtered maximum absolute time error of (max|TE_L| ≤ 5 ns).
The performance of the devices this year showed improvement over those tested in previous years: every T-BC tested this year passed the Class D performance limit of (max|TE_L| ≤ 5 ns) with ease.
For the first time at EANTC, we also tested Time Synchronization over 800GE links for the Juniper PTX10002-36QDD using the Calnex Paragon-Neo S, which passed the Class D conformance test successfully.
Additionally, all devices also passed the Class C conformance test this year.

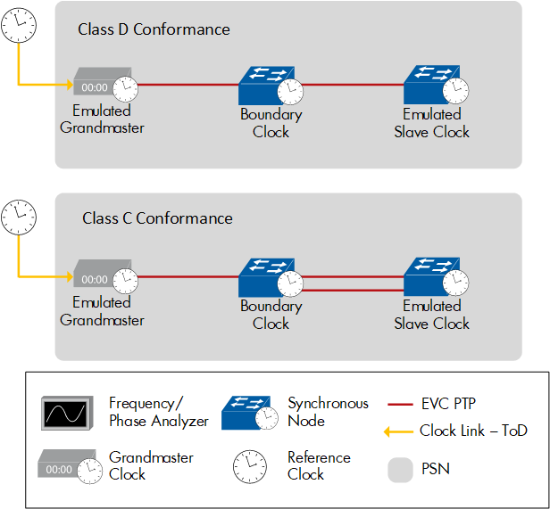

The setup of both test cases consisted of an emulated Grandmaster (T-GM ) and an emulated Slave Clock (SC), with the T-BC  under test being located in between them.
While these tests were not interoperability tests, they were still of utmost importance as further tests require either the Class C or Class D qualifications.
