Global IPv4IPv6 Routing Table

We verified that IPv4 and Ipv6 prefixes can be transported natively over an SRv6 network without VRF-based VPN services. The Egress PE advertised correctly an SRv6 service SID for IPv4/IPv6 prefixes in BGP and then the ingress PE encapsulated IPv4/IPv6 packets into IPv6 using advertised SRv6 SID as the outer IPv6 destination address.
We confirmed SRv6 endpoint processed the packets using one of the designated behaviors: End.DT4 with NEXT-CSID, End.DT6 with NEXT-CSID, or End.DT46 with NEXT-CSID.

Figure 92

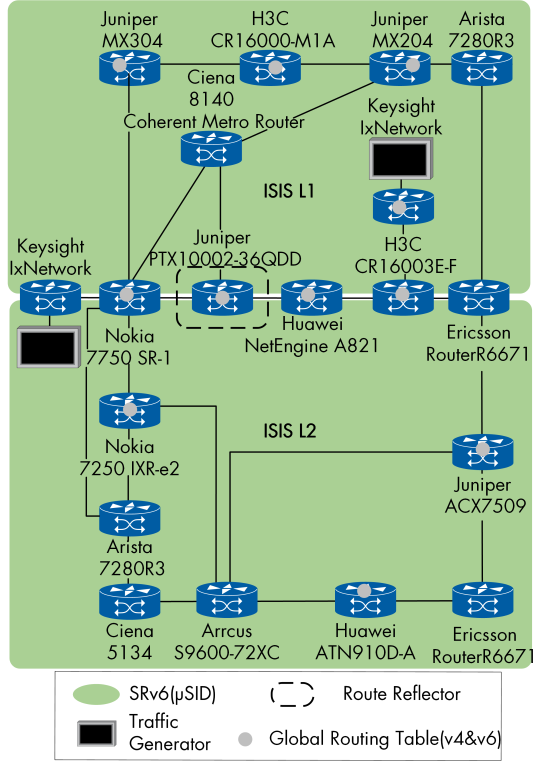

Figure 92:Global Routing Table over SRv6

ABRPERoute ReflectorTraffic GeneratorTransit Node

Ericsson Router6671,
H3C CR16003E-F,
Huawei NetEngine A821,
Juniper PTX10002-36QDD,
Nokia 7750 SR-1

H3C CR16000-M1A,
H3C CR16003E-F,
Huawei ATN 910D-A,
Huawei NetEngine A821,
Juniper ACX7509,
Juniper MX204,
Juniper MX304,
Juniper PTX10002-36QDD,
Keysight IxNetwork,
Nokia 7250 IXR-e2,
Nokia 7750 SR-1

Juniper PTX10002-36QDDKeysight IxNetworkArista 7280R3

Table 44: Global IPv4/IPv6 Routing Table  - µSID
